How to Make Die Cut Lines in CorelDRAW: Step-by-Step Guide

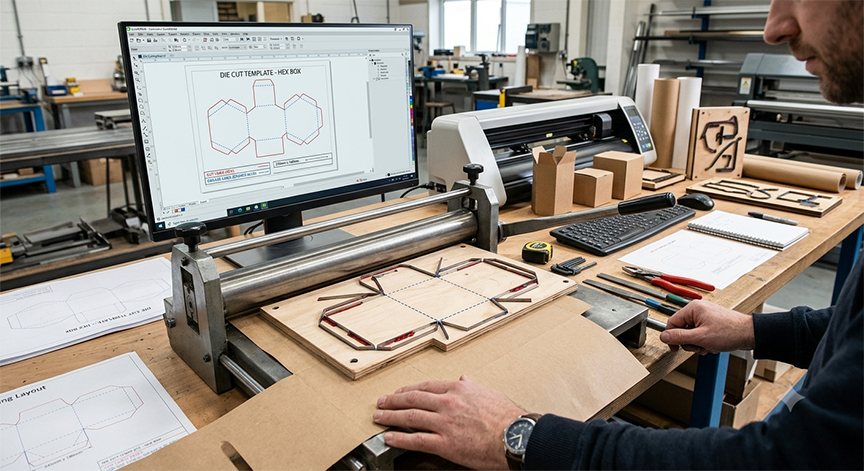

If your packaging box, sticker, or label needs to be cut into a custom shape — not just trimmed to a rectangle — you need a die cut line: a precise vector path that tells the cutting machine (or die-maker) exactly where to cut. Get this wrong and the whole job can be rejected or, worse, cut incorrectly on a full production run. Here's the exact step-by-step process for building one correctly in CorelDRAW.

1. What a Die Cut Line Actually Is

A die cut line (often just called a dieline or cut line) is a vector outline representing the exact shape a cutting die, laser cutter, or plotter will follow to cut your material — box packaging, a sticker, a label, a folder. It is not part of the printed design — it's a guide layer used purely for production, removed or hidden before the artwork is actually printed.

For custom-shaped packaging (a soap box with flaps, an irregular sticker shape, a folded carton), the die cut line is what turns a flat printed sheet into the final 3D or custom-shaped product.

2. Die Cut Lines vs Bleed vs Regular Trim Marks

These are easy to confuse, but they solve different problems:

• Trim/crop marks — used for standard rectangular cuts (see our full cutting marks guide), marking a simple straight cut
• Bleed — extra artwork extending past any cut edge so minor cutting variance doesn't expose white paper (see our bleed guide)
• Die cut line — a custom, often irregular shape, used when the final product isn't a simple rectangle — packaging boxes, custom stickers, folders with tabs, etc.

A packaging box design typically needs all three working together: bleed extending past the die line, the die line itself marking the exact cut/fold shape, and sometimes standard trim marks for any straight rectangular edges within the layout.

3. Step 1 — Set Up a Dedicated Die Line Layer

Keeping your cut line completely separate from your printed artwork is the single most important habit in this whole process.

1. Open the Object Manager (Window > Dockers > Object Manager)
2. Click New Layer and name it clearly — DieLine or CutLine
3. Keep this layer above your printed artwork layers so it's always visible while you work
4. Later, before final print export, you'll either hide or delete this layer from the printed file — but keep it in your master working file permanently

4. Step 2 — Create a Spot Color for the Cut Line

Cutting machines and die-makers identify the cut path by a distinct, unmistakable color — never a regular CMYK process color, since that could be confused with actual design elements.

1. Open the Color Palette flyout and choose Add Color
2. Switch to a Spot Color library (commonly Pantone)
3. A bright, unmistakable spot color like Pantone 802 C (bright fluorescent green) or a similarly unique spot shade is industry-standard for die lines, precisely because nothing in your actual artwork should ever accidentally use it
4. Name this swatch clearly, e.g., DieCutLine, so anyone opening the file understands its purpose immediately

5. Step 3 — Draw or Trace the Cut Path

Depending on your project:

• For a custom sticker or label shape — draw the cut path directly using the Bezier or Pen tool, tracing just outside your design's visible edge
• For packaging (boxes, cartons, folders) — either draw the flat unfolded structure manually with precise measurements, or start from a manufacturer-supplied dieline template if your box vendor provides one (always use their template if available — it guarantees mechanical accuracy)
• For irregular shapes traced from artwork — select your image or shape, then use Bitmaps > Outline Trace to generate a vector path automatically, which you can then clean up and simplify with the Shape tool

Keep the path as a single, closed, clean vector object — the cutting machine needs a fully closed loop with no stray nodes or overlapping segments.

6. Step 4 — Set the Outline (Not Fill) to Your Spot Color

This is the step that trips up most beginners:

1. Select your die line path
2. Set the Fill to None — the shape itself should never have a fill, since it's not meant to print
3. Set the Outline color to your DieCutLine spot color swatch
4. Set the outline width to a thin, consistent value — commonly 0.25pt to 1pt, but always confirm with your specific printer or die-maker

A die line with a fill (instead of just an outline) is a common submission error that causes files to bounce back for correction.

7. Step 5 — Position the Die Line Correctly Over Your Artwork

• With View > Bleed enabled, confirm your printed artwork extends fully into the bleed area around the die cut path (not just around the rectangular page edge)
• Double-check that any text, logos, or important design elements stay safely inside the die line — not touching or crossing it, to avoid accidental clipping
• If the packaging has fold lines in addition to cut lines, use a second spot color (e.g., a distinct blue) specifically for folds, so the die-maker can tell cuts and folds apart at a glance

8. Step 6 — Export Settings for Die Cut Files

1. Go to File > Export To > PDF (or Publish to PDF)
2. Under Color, make sure "Convert spot colors to CMYK" is UNCHECKED — this is critical, since converting your die line's spot color to CMYK defeats the entire purpose of using a distinct, unmistakable color
3. Confirm your printed artwork elements are set to CMYK, while only the die line itself remains a spot color
4. Export, then open the PDF to confirm the die line layer is present and still shows as its distinct spot color, not converted

9. Working With Kiss Cut vs Through Cut

For sticker and label work specifically, clarify which type of cut your project needs before finalizing the die line:

• Through cut — cuts completely through both the sticker material and its backing paper, producing individual, fully separated stickers
• Kiss cut — cuts only through the top sticker material, leaving the backing sheet intact, so stickers can be peeled off individually while staying mounted on a shared backing sheet

The die line vector path itself is built the same way for both — the difference is a cutting-depth instruction you communicate to your printer/production team, not something drawn differently in CorelDRAW.

10. Common Die Cut Line Mistakes

• Using a fill instead of an outline-only path for the die line
• Using a CMYK color instead of a distinct spot color, risking it being confused with real artwork or lost entirely in the "convert to CMYK" export step
• Leaving gaps in the path — an open, non-closed vector shape can't be reliably cut by a machine expecting a continuous loop
• Placing text or logos too close to (or crossing) the die line, risking them being cut off
• Forgetting to add bleed around the die cut shape itself, not just around the outer rectangular page

11. A Pre-Submission Die Cut Checklist

• Die line is on its own clearly labeled layer, separate from printed artwork
• Die line uses a distinct spot color, outline only (no fill)
• Path is a single, closed vector shape with no stray nodes
• Bleed extends properly around the die cut shape
• Important text/logos stay safely inside the die line, not touching it
• Fold lines (if any) use a separate, distinct spot color from cut lines
• Export confirmed "convert spot colors to CMYK" is disabled
• Kiss cut vs through cut requirement confirmed with your printer

12. Practice on Real Packaging Templates

13. Frequently Asked Questions
